Home > Yinlong LTO Cells >

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Product Categories
Deligreen Power Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

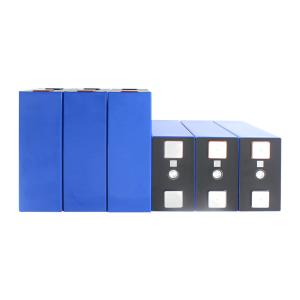

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

  • 1
  • 2

Brand Name : Yinlong

Model Number : LTO 155ah

Certification : CE,KC,ROHS,etc

Place of Origin : China

MOQ : 4PCS

Price : Negotiable

Payment Terms : L/C,D/A,T/T,Western Union,MoneyGram

Supply Ability : 10000pcs/day

Delivery Time : 7-15 business days

Packaging Details : Carton

Brand : Yinlong

Model number : LTO 110ah

Weight : 4150g

Size : 130*71*205mm

Max.Discharge Voltage : 1.5V

Capacity : 155AH

Battery Size : LTO Battery

Max.Charge Voltage : 2.9V

Voltage : 2.3V

Contact Now

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

High voltage BESS

Parameters

Battery Type Lithium titanate battery
Nominal Voltage 2.3V
Nominal Capacity 155Ah
Max.Charge Voltage 2.9V
Max.Discharge Voltage 1.5V
Weight 4150g
Cycle life 16000 cycles
Cell-Level Brand New Grade A
Dimension 130*71*205mm
Internal Resistance around 0.5mΩ

Advantages of Lithium Titanate Battery
1. faster charging: 10mins fully charged
2. high discharge rate: as much as 10C-15C
3. wide working temperature range: -50°C ~ 65°C
4. super long cycle life: over 30,000 times

Detail Specifications

Item Parameters
Model Gree Yinlong
Materials LTO
Nominal capacity 155Ah
Nominal voltage 2.3 V
130*71*205mm
Dimension
Weight 4150±50g
Internal Resistance ≤0.5mΩ
Operating voltage Charge cut-off voltage 2.9 V
Discharge cut-off voltage 1.5 V
Standard charge/discharge current Charge current 1C(155 A)
Discharge current 1C(155A)
Maximum charge current 3C 465A
Maximum discharge current 3C 465A,500A for 10 seconds
Cycle life 16000 times
Operating Thermal Ambient Charging -50℃~ 65℃
Discharging -50℃~ 65℃
Storage Thermal Ambient Short term(within 1 month) -20℃~ 45℃
Short term(within 1 year) -20℃~ 20℃

What is LTO/Lithium titanate battery?

  • Lithium titanate battery(LTO) is a kind of lithium titanate used as a negative electrode material for lithium ion batteries. It can be combined with lithium manganate,NCM materials or lithium iron phosphate to form a 2.4V or 1.9V lithium ion secondary battery.
  • LTO battery is deep cycle with more than 25000 times.
  • LTO lithium battery is one of the best options for solar energy system
  • It's for street lamp,home power wall,solar system etc

Lithium battery won't lose capacity at extremely low temperature

LITHIUM TITANATE(LTO)

Spinel structure/Zero strain material

Lithium titanate has a stable 3D crystal structure,The material structure hardly changes in discharging&charging.
Compared to lithium battery with graphite as the negative electrode,LTO hardly results in SEI with poor stability that
happens on LFP,Avoiding thermal runaway caused by SEI during high-temperature decomposition, resulting in battery
fire and explosion.

Lithium titanate batteries have a higher potential for lithium metal,no lithium crystal occured,safer and better stability.
It's able to charge&discharge in high rate due to 3D lithium iion transist channel.Fully charge and discharge within the
range of -50 ° C extreme low temperature to 60 ° C ultra-high temperature.

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Delithiation,LTO(volume change rate ± 3%),25000 times life

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS
Frequent delithiation,Graphite volume increases(volume change rate ± 3%),reducing life cycles

Safety & Stability
Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

LTO,NO SEI

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Other lithium,SEI

Low reactivity between lithium titanate and electrolyte,No SEI,higher safety and stability.

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS
Stabbing Over Charging%Dischagring

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Stabbing under water Drilling

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Cutting Fire test

Fast charging

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Wider range
Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS
Full charge at -50 degree


Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Yinlong certificate

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESSYinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS

Yinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESSYinlong Gree LTO Prismatic 155ah 3C 16000 Cycles Lithium Titanate Battery 2.3V HVESS
