High Safety Yinlong Brand New Class A LTO Battery 2.3V 40ah Lithium Titanate Battery
The lithium titanate battery is a type of rechargeable battery which is also called LTO Battery, which has the advantage of being faster to charge than other lithium-ion batteries and a long cycle of life. The discharge rate of Titanate batteries is very high, as much as 10C.
A disadvantage of lithium titanate batteries is that they have a lower inherent voltage (2.4 V), which leads to lower specific energy of about 30 = 110Wh/kg than conventional lithium ion battery technologies (which have an inherent voltage of 3.7 V).
Parameters
| Battery Type | Lithium titanate battery |
| Nominal Voltage | 2.3V |
| Nominal Capacity | 40Ah |
| Max.Charge Voltage | 2.8V |
| Max.Discharge Voltage | 1.6V |
| Weight | 1.2Kg |
| Cycle life | 25000 cycles |
| Cell-Level | Brand New Grade A |
| Dimension | 66mm*160mm |
| Internal Resistance | around 0.5mΩ |
Advantages of Lithium Titanate Battery
1. faster charging: 10mins fully charged
2. high discharge rate: as much as 10C-15C
3. wide working temperature range: -50°C ~ 65°C
4. super long cycle life: over 30,000 times
Detail Specifications
| Item | Parameters |
| Model | OSN-LTO-66160D |
| Materials | LTO |
| Nominal capacity | 40Ah |
| Nominal voltage | 2.3 V |
| | Length: 66mm*160mm |
| Dimension |
| | Diameter: 66mm*160mm |
| Weight | 1.24±0.1kg |
| Internal Resistance | ≤1mΩ |
| Operating voltage | Charge cut-off voltage | 2.8 V |
| Discharge cut-off voltage | 1.5 V |
| Standard charge/discharge current | Charge current | 1C(40 A) |
| Discharge current | 1C(40A) |
| Maximum charge current | 10C |
| Maximum discharge current | 10C |
| Cycle life | 30000 times |
| Operating Thermal Ambient | Charging | -50℃~ 65℃ |
| Discharging | -50℃~ 65℃ |
| Storage Thermal Ambient | Short term(within 1 month) | -20℃~ 45℃ |
| Short term(within 1 year) | -20℃~ 20℃ |
LTO Advantages
Faster charge: 10mins fully charged
Higher discharge rate: Up to 10C
Wide working temperature range: -50°C ~ 65°C
Super long cycle life: over 30,000 times
Widely Applications
Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles
· Long-Duration (LD) grid energy storage systems
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
What is LTO/Lithium titanate battery?
- Lithium titanate battery(LTO) is a kind of lithium titanate used as a negative electrode material for lithium ion batteries. It can be combined with lithium manganate,NCM materials or lithium iron phosphate to form a 2.4V or 1.9V lithium ion secondary battery.
- LTO battery is deep cycle with more than 25000 times.
- LTO lithium battery is one of the best options for solar energy system
- It's for street lamp,home power wall,solar system etc
Lithium battery won't lose capacity at extremely low temperature

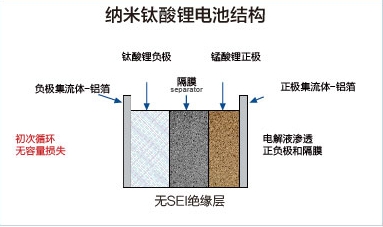

LITHIUM TITANATE(LTO)
Spinel structure/Zero strain material
Lithium titanate has a stable 3D crystal structure,The material structure hardly changes in discharging&charging.
Compared to lithium battery with graphite as the negative electrode,LTO hardly results in SEI with poor stability that
happens on LFP,Avoiding thermal runaway caused by SEI during high-temperature decomposition, resulting in battery
fire and explosion.
Lithium titanate batteries have a higher potential for lithium metal,no lithium crystal occured,safer and better stability.
It's able to charge&discharge in high rate due to 3D lithium iion transist channel.Fully charge and discharge within the
range of -50 ° C extreme low temperature to 60 ° C ultra-high temperature.
Delithiation,LTO(volume change rate ± 3%),25000 times life
Frequent delithiation,Graphite volume increases(volume change rate ± 3%),reducing life cycles
Safety & Stability
LTO,NO SEI
Other lithium,SEI
Low reactivity between lithium titanate and electrolyte,No SEI,higher safety and stability.
Stabbing Over Charging%Dischagring
Stabbing under water Drilling
Cutting Fire test

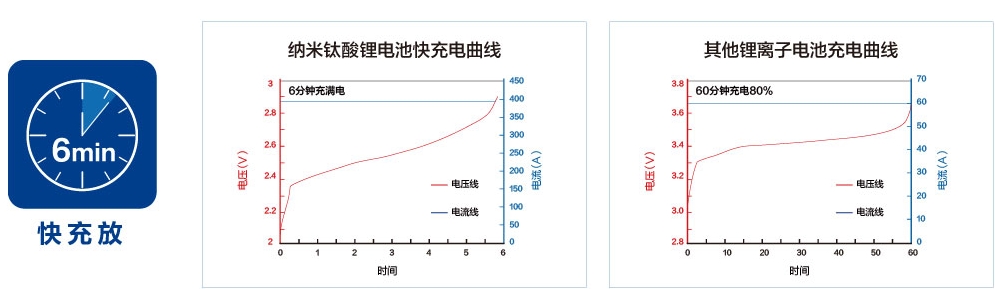

Fast charging
Wider range
Full charge at -50 degree
Product Tags:
|
|

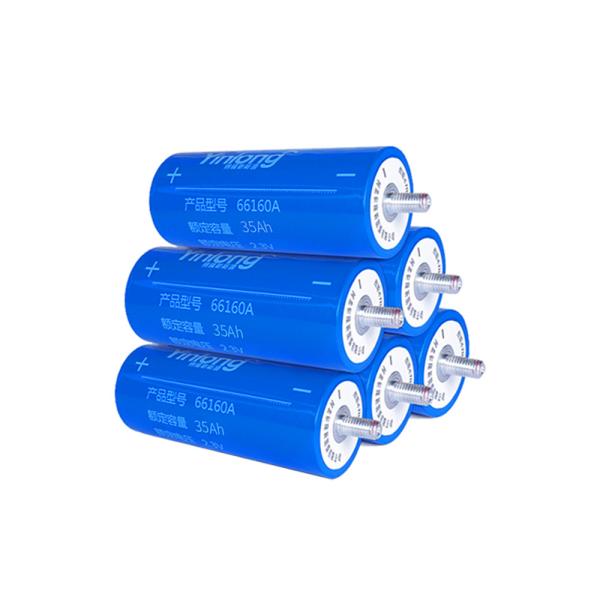

High Safety Yinlong Brand New Class A LTO Battery 2.3V 35ah 66160 Lithium Titanate Battery For Solar System Images
|
