CATL 310ah 48V Lithium Iron Phosphate Cell Solar Lifepo4 Lithium Ion Battery For Electric Vehicle
Contemporary Amperex Technology Co., Limited (CATL) is a global leader in the development and manufacturing of lithium-ion batteries, with businesses covering R&D, manufacturing and sales in battery systems for new energy vehicles and energy storage systems. The company is committed to providing cutting-edge solutions for global new energy applications.
| | | CATL 75AH | | | | CATL 310AH |
| | 60AH | 75AH | 100AH | 240AH | 271AH | 310AH |
| | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
Discharge cut-off voltage | 2.5V | 2.5V | 2.8V | 2.5V | 2.5V | 2.5V |
| | 12A(0.2CA to 3.65V) | 15A(0.2CA to 3.65V) | 20A | 48A | 54.2A | 62A 0.2C |
| | 3.65V | 3.65V | 3.65V | 3.65V | 3.65V | 3.65V |
| | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V |
| | 60A | 75A | 100A | 240A | 271A | 310A |
Max coutinous charge current | 60A | 75A | 100A | 240A | 271A | 310A |
Max continous discharge current | 90A | 112.5A | 100A | 240A | 271A | 310A |
| | 1.69KG | 2.12KG | 2.3KG | 5.1KG | 5.33KG | 6KG |
| | 150.5*174.5*32.5mm | 128*174*48mm | 168*200*34.5mm | 200*174*75mm | 200*174*75mm | 72*174*204mm |
| | ≤0.7mΩ | ≤0.7mΩ | ≤0.7mΩ | ≤0.5mΩ | ≤0.3mΩ | ≤0.5mΩ |

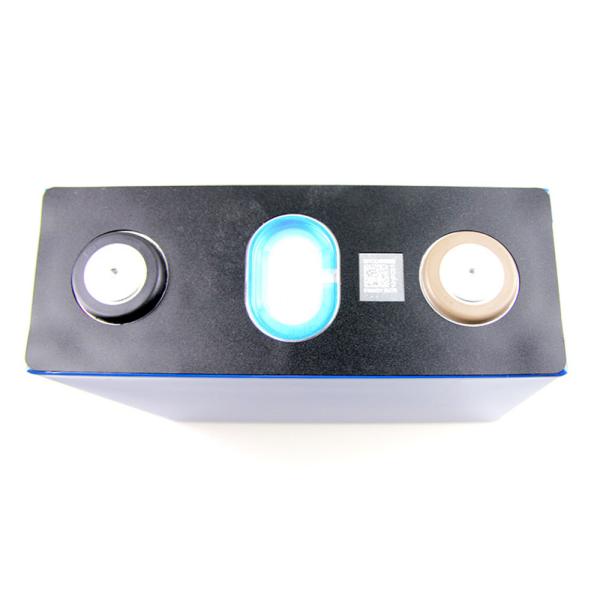

3.2V lifepo4 310AH large capacity,aluminum housing.
Large capacity 310AH lithium ion battery parameter
Connection
Screw connected,the prismatic battery cell can be easily mounted/connected with barbus/screws.You can handle it DIY.
Safety: safest Li-Ion battery, built in PCM/PCB, none fire or explosive
Clean and Green energy, no toxic material contained
Long life cycle, 80% capacity remain after 500 times deep cycle.
No memory effect,highly efficient charge anytime, no reduction of capacity
Operation temperature: -20~55°C
Good performance at high temperature and high temperature resistance
Low self-discharge rate: < 3% monthly
When DIY,what should we do?
Exercise caution when working with all electrical equipment, wear safety glasses,gloves etc when appropriate. Sparks & Flashes can damage your eyes.
Ensure cells are within operating temperature range prior to use.
Do Not Use if cells are punctured, damaged or leaking.
Provide adequate protection to cells during assembly & use thereafter.
Dispose of properly to recycling or similar facility.
Do Not submerge in water.
Do Not allow to come in contact with direct heat, extreme temperatures or fire.
Prevent harsh impacts or extreme vibrations which can cause immediate or cumulative damage.
Deep cycle,more than 2000 times life span.Longer life than lead acid battery.
This lithium battery is available for many applications,golf cart,RV,solar storage system,E-motorcycle,Home energy storage system,powerwall etc.
About the Transportation&Delivery
1. Shippment to USA:By sea+Express(DDP,Tax free)
ETD:5-8 days
ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 15-25 days after sailing.
2. Shipment to EU:By railway+Express(DDP,Tax free).Except Switzerland,Romania
ETD:5-8 days
ETA:30-45 working days after shipping(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 25-40 working days after shipping.
3. We can't deliver the following address directly:
USA: Military address and PO box address are not acceptable;
Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
Portugal: Azores and Madeira
Spain:Canary Islands, hueda and melilia
Russia: Kamchatka Peninsula
Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.
About US
Changsha Deligreen Power Co.LTD,founded in 2010,is a "Green Energy Solution Service Provider".
Newest technology,new idea,heard-working and honest people.
Focus on lithium rechargeable battery,BMS,Balancer,charger and relative products.
Main application:electric bicycle,scooter,motorhome,AGV,solar/wind system,Energy storage system,truck and so on.s:
We promise"real"lithium capacity
We promise“100%“ refund for any quality problem
We promise”100%“ replacement for any shipping damage
We promise lifetime fast technical supportCustomers‘ satisfaction is our endless pursuing.
FAQ
Q: What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Q: 1. Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get
the product specifications such as voltage capacity application etc.
Q:How can you guarantee your quality?
A: Normally we will send you a sample to confirm everything first. We will make the big order exactly
the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery
Q: What is your term for payment?
A: We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
Q: What kind of certificates do you have?
A:We can provided CE,ROHS,MSD,SHIPPING CERTIFICATIONS.
